LB 1800: Reliable transfer point of load and sense lines
The challenges of high requirements for environmental tests with temperature and humidity, load lines that are difficult to lay and requirements for tightness of the test rooms can be met with the help of the power interface (LB 1800.2C). For this purpose, the portfolio offers customized solutions that serve as a transfer point for load and sense lines.
-
Space-saving
Compact interface solutions
-
Reliable
Testing minus any disruptive environmental influences
-
Time-saving & flexible
For rewiring without any extra work
-
Safe & contact-protected
Even with high voltage and currents
-
Customisable
Dimension and connections axactly as you require them
-
Proven quality
Udes throughouts Germany
Features at a glance

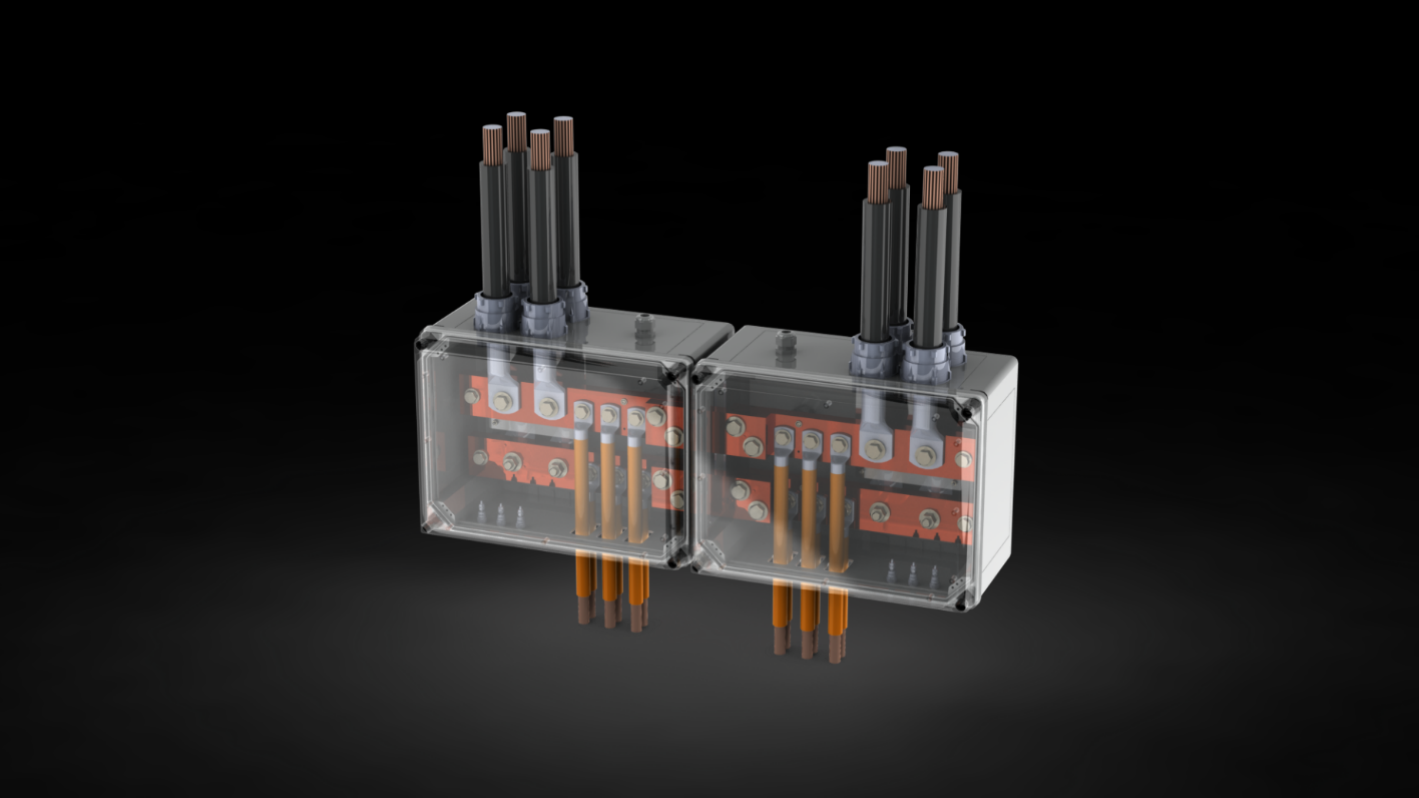

LB 1800.2C
The LB 1800.2C was manufactured for safe contacting of high-voltage lines in the test cabinet.
Flexible wiring of the DUT
The LB 1800.2C offers a 2-channel cable feed-through with multiple ports for the connection of several load and sense wires.
Technical Specifications
| LB 1800.2C | |
|---|---|
Dimensions |
226 mm x 805 mm x 345 mm |
Max. current [const.] |
1.800 A per channel |
High voltage proof |
1.000 V AC |
Hi, I`m Marvin. How can I help you?
Whether you need more details on the LB 1800.2C or are looking for a creative, experienced partner to tackle your very specific challenges: Just contact me directly. I will be happy to advise you.
Marvin Leitmann
Your product development specialist
