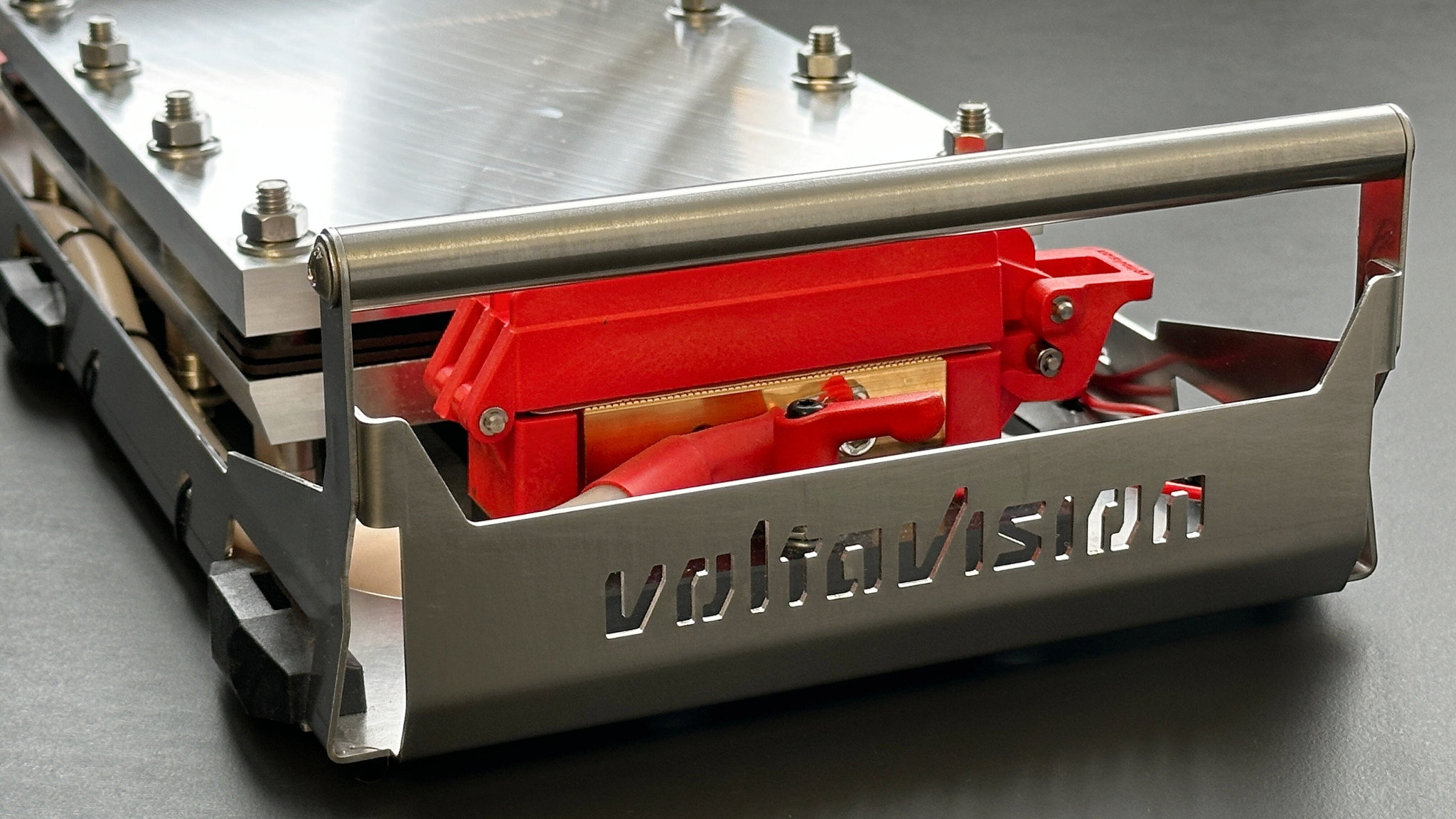

EF-600: The space-saving and efficient contacting solution for pouch cells with opposing contacts
The EF-600 product series offers an optimum solution for pouch cells. Thanks to the intelligent, space-saving design and the use of high-quality materials, pouch cells in various formats can be contacted safely and easily and tested with consistent contact quality.
-
Space-saving
Compact size
-
Short set-up times
Quickly installed and converted
-
Reliable readings
High test quality due to optimized cell uptake
-
Flexible mounting
Scalable according to cell format and chamber size
-
Flexibly extendable
Combined systems possible
-
Low weight
thanks to high-quality materials
Features at a glance
EF-600
The EF-600 ensures fast and reproducible contacting of pouch cells with opposing tabs.
High test quality due to optimized cell uptake
The combination of insert and clamping plates functions as a unit.
Customizable and scalable
Individual number of inserts, depending on requirements.
Technical Specifications
| EF-600 | |
|---|---|
Cell format |
Pouch cell |
Max. current [const. at 20 °C] |
10 A; 300 A; 600 A - depending on configuration |
Max. Voltage |
6 V |
Temperature range |
-35 °C ... +90 °C |
Rel. Humidity |
0 % ... 75 % |
Life expectancy |
Min. 10.000 plugi-in cycles |
