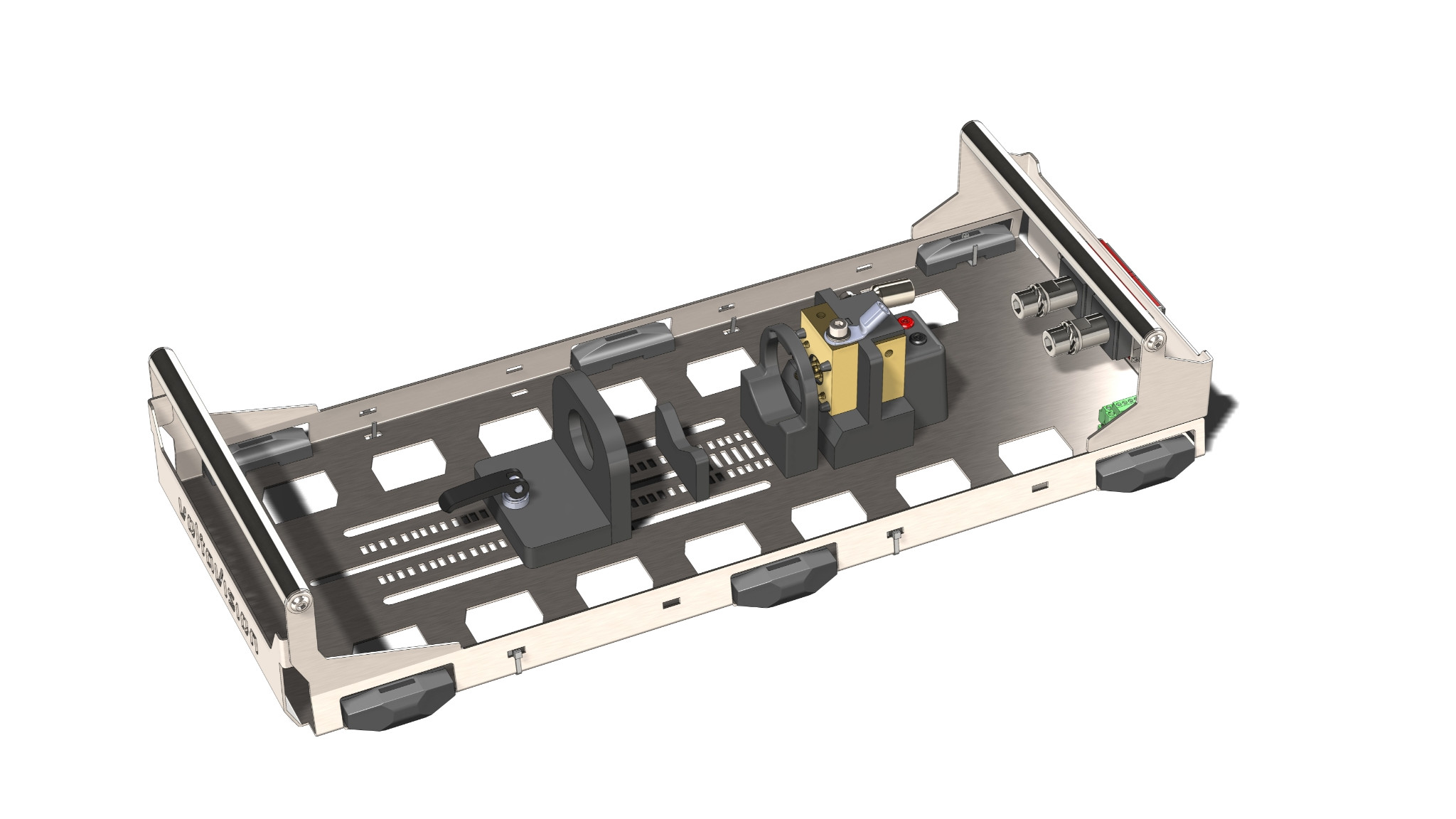

ER-150-OS: The space-saving and efficient contacting solution for round cells with one-sided contacts
The ER-150-OS product series offers an optimum solution for round cells. Thanks to the intelligent, space-saving design and the use of high-quality materials, round cells in various formats can be contacted safely and easily and tested with consistent contact quality.
-
Space-saving design
Compact and reliable design
-
Short set-up times
Simple integration of the test specimens using slide-in technology
-
Reliable readings
High test quality due to optimized cell uptake
-
Variable total size
Scalable according to cell format and chamber size
-
Flexibly expandable
System combinations possible
-
Low weight
thanks to high-quality materials
Features at a glance
ER-150-OS
The ER-150-OS ensures fast and reproducible contacting of round cells with one-sided tabs.
High test quality due to optimized cell uptake
The combination of insert and clamping plates functions as a unit.
Individually scalable
Individual number of inserts, depending on requirements.
Technical Specifications
| ER-150-OS | |
|---|---|
Cell format |
Round cell |
Max. current [const. at 20°C; 40°C; 70°C] |
150 A; 100 A; 50 A |
Max. Voltage |
6 V |
Temperature range [°C] |
-35°C … +90°C |
Rel. humidity |
0 % ... 75 % |
